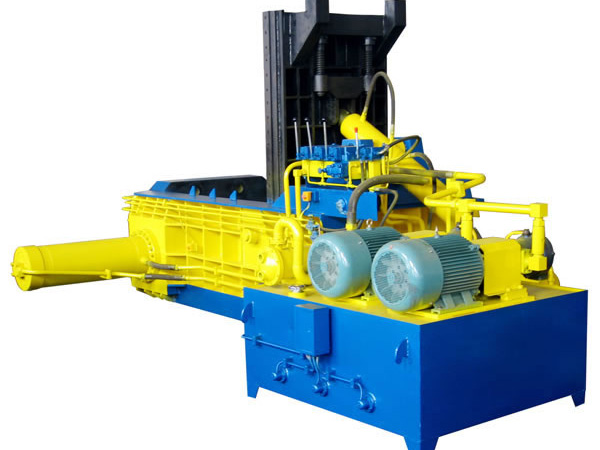

Y83-200 Scrap Metal Baler

The Y83-200 scrap metal baler is mostly applicable for the metal smelting factory with medium output, as well as the waste metal recycling station. It is a manually operated machine. Its compacting box is made in size of 1600mm×1200mm×800mm and 1800mm×1400mm×900mm as customers like. The dimension of the compressed bale is about 400mm×400mm in size.
Based on the demands of customers, the scrap metal baler can be matched with 37kw or 44kw power system. Its output is able to reach 4 to 6 tons within an hour. More information in detail can be supplied by our sales department.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Model YG320/220-755 Quantity 1pcs 　
Nominal Thrust 2000kN Stroke 755mm 　
2 Side Hydraulic Cylinder Model YG240/160-1260 Quantity 2pcs Double cylinders in parallel
Nominal Thrust 950kN×2 Stroke 1260mm
3 Lid Cylinder Model YG200/140-1250 Quantity 1pcs 　
Nominal Thrust 800kN Stroke 1250mm 　
4 Turn-out Cylinder Model YG125/80-395 Quantity 1pcs 　
Nominal Thrust 300kN Stroke 395 mm 　
5 Hydraulic System Pressure 25MPa (Max. Pressure 27MPa) 　
6 Oil Tank Capacity 2160L 　
7 Compacting Box Size 1600mm×1200mm×800mm 　
8 Thickness of Baled Material Common metal mateials 　
9 Bale Size 400mm×400mm 　
10 Bale Density ≥ 1800kg/m3 　
11 Control Mode Manual control 　
12 Single Cycle Time About 120s 　
13 Oil Pump Model 160YCY14-1B Rated Pressure 31.5MPa 　
Flow Quantity 160ml/r Quantity 2pcs 　
14 Motor Model Y225M-6 Rated Rotating Speed 980rpm 　
Power 30kw Quantity 2pcs 　
15 Overall Dimension 6800mm×3800mm×2000mm 　
16 Machine Weight 16 ton 　
