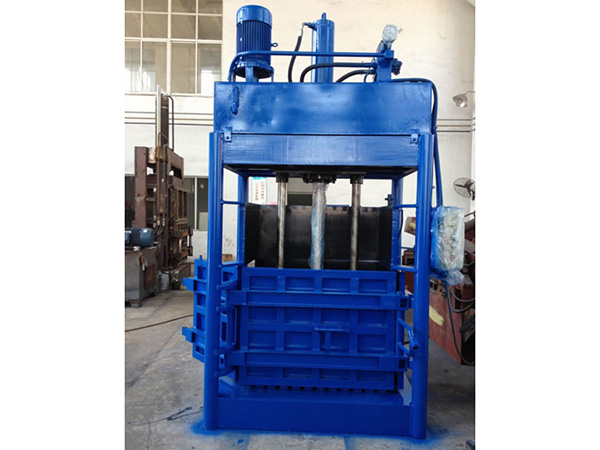

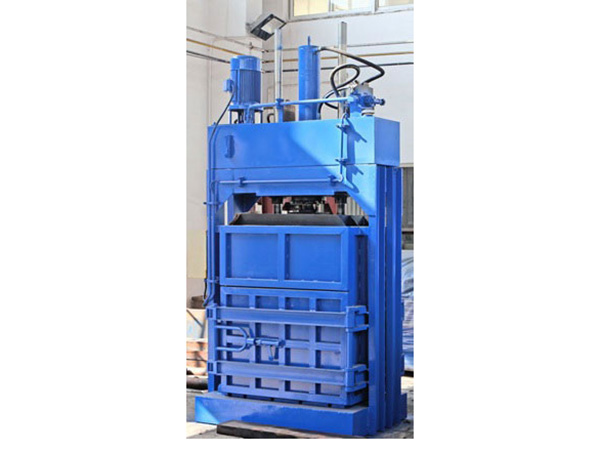

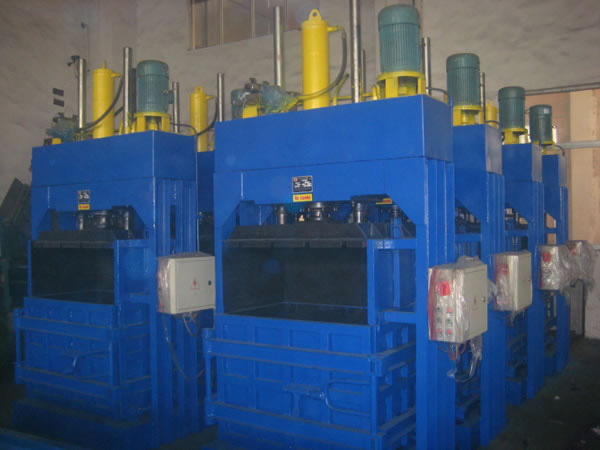

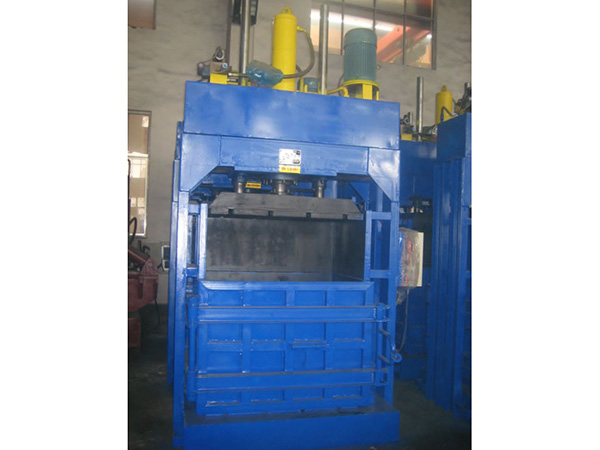

Vertical Waste Baler

Vertical waste baler can be used to press and bale many kinds of recyclable materials, including papers, plastic films, cardboards, and cotton, etc. The baled materials are compacter and are smaller in size, which will reduce the storage space and shipping space, thus enabling you to gain the optimal revenue.
It is equipped with safety interlocks and a PLC control system, so it is safe to use and easy to operate.

More Details
Vertical waste baler can be used to bale a wide range of materials. The bale width can reach up to 72" and the bale weight can reach up to 2,000 lbs.
The size of feed openings can be 72" × 36".
This vertical waste baler is easy to operate and control.
It is specially designed and enjoys long service life.
Fitted with UL listed electrical panel, it is safe to use.
To facilitate the unloading, our vertical waste baler is provided with bale ejector.
It does not need special foundation during installation, and since it is vertical, it takes up small floor area.

Our Y82-25FA vertical waste baler makes the waste PET bottle, woven bag, fabric and other loose materials baled for ease of delivery and storage. Equipped with a 7.5kw motor, this product is energy efficient and eco-friendly, meeting the demands of small recycling plants.

The size of the compacting box is allowed to be specially designed to fulfill the demands of users. In general, the standard size of the compacting box is 1080mm×700mm×1300mm. Moreover, the weight of the bale ranges from 100 to 300kg depending on the material feeding state.

Technical Parameters
No. Parameters Note
1 Master Hydraulic Cylinder Model YG140/100-1200 Quantity 1pcs 25ton
Nominal Thrust 250kN Strike 1200mm
2 Compression Box Size (L×W×H) 1080mm×700mm×(1300~1650)mm
3 Bale Size (L×W×H) 1080mm×700mm×(300~850)mm
4 Hydraulic System Pressure 16.0MPa
5 Motor for Hydraulic Pump Model Y160M-4 Quantity 1pcs
Rated Rotating Speed 1460rpm Rated Power 11kw
6 Hydraulic Pump Model 40YCY14-1B Quantity 1pcs
Rated Displacement 40ml/r Rated Pressure 31.5MPa
7 Max. Distance from Bale Ejector to the Bottom 1650mm
8 Min. Distance from Bale Ejector to the Bottom 450mm
9 Pushing Time of Total Stroke 25s
10 Returning Time of Total Stroke 15s
11 Bale Weight 200-250kg
12 Overall Dimension (L×W×H) 1550mm×900mm×3800 mm
