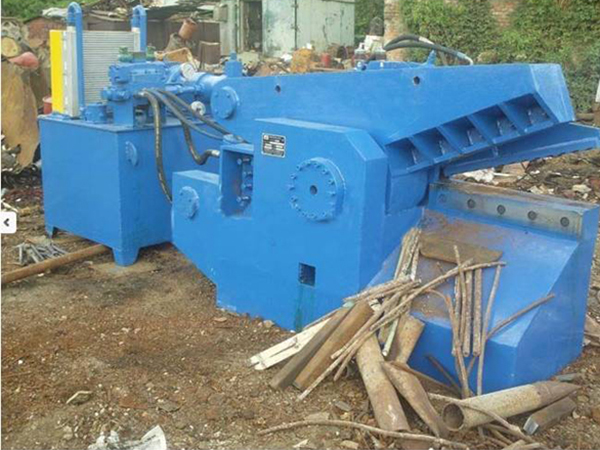

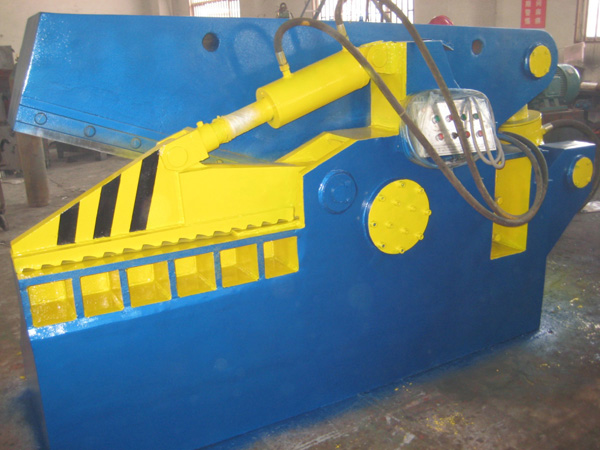

Q43 - 1600 Alligator Shear

Our Q43-1600 alligator shear is a perfect product used in small and medium sized metal processing plant, steel plant, scrap metal recycling site. It is suitable for cutting diversified waste metal materials at cold state. Additionally, its blade opening can be designed to be 600mm or 800mm based on the demands of users. </p>
<p>With the aid of overflow valve and other devices, this alligator shear is operated with easy overload protection. Moreover, the hydraulic parts can be lubricated automatically to keep longevity. With a wide customer base, this machine is very popular. More information will be obtained from our professional sales team.

Technical Parameters
No. Parameters Note
1 Shear Cylinder Type Quantity 1pcs
Nominal Thrust 1600kN Stroke 235mm
2 Clamping Cylinder Type   Quantity 1pcs
Nominal Thrust 80 kN Stroke 100mm
3 Hydraulic System Working Pressure 21MPa(Max. Pressure 25MPa)
4 Oil Tank Capacity 750L
5 Blade Length 800mm
6 Size of Major Applicable Materials Common steel materials
7 Cutting Frequency 8-12times/min.
8 Control Mode Manually
9 Max. Blade Opening 320mm
10 Oil Pump Model 80YCY14-1B Rated Pressure 31.5MPa
Flow Quantity 80ml/r Quantity 1pcs
11 Motor Model Y180M-4 Rated Speed 1470rpm
Power 18.5kw Quantity 1pcs
12 Overall Dimension 2160mm×1100mm×1600mm
13 Overall Power 18.5kw
14 Overall Weight 4.5ton
