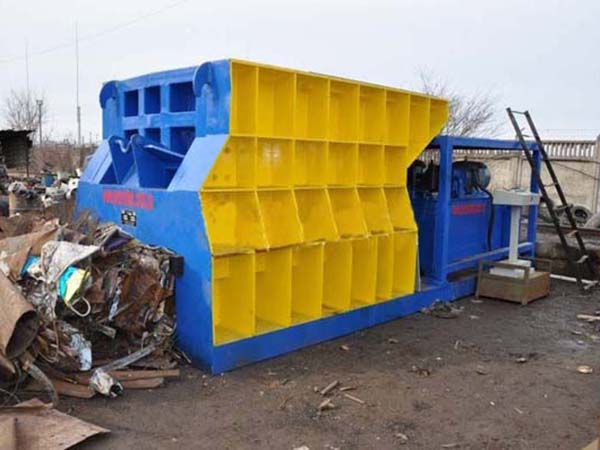

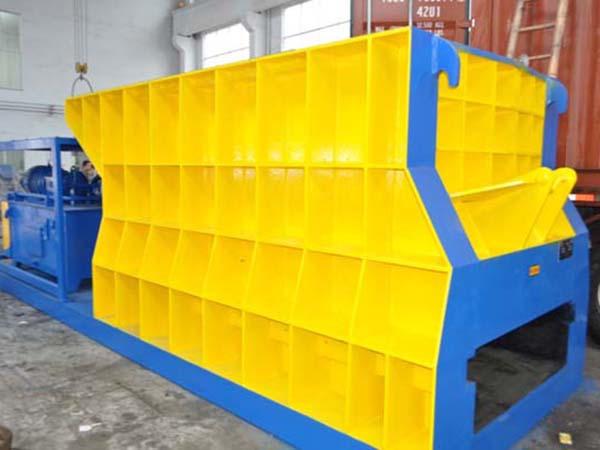

Horizontal Metal Shear

Given our actual development situations at present, this Q43W-4000B horizontal metal shear is designed and fabricated through absorbing the advanced workmanship of congeneric products. It is mostly exported to Russia, Ukraine and other counties.

Application
This horizontal metal shear is applicable for cutting the metal shaped in different cross section like round, square, channel, angle, I shape, plate and various waste structural metal at cold state. It brings convenience to the baling, storage and transportation of scrap metal materials, also offers qualified furnace charge for smelting plant. With large application range, this machine is commonly used as the processing equipment in the metal recycling unit, casting room of factory and machinery construction industry.

Features
1.This series product adopts the horizontal structure.
2.Different from the product with mechanical transmission system, our hydraulically driven machine has a range of characteristics including small volume, light weight, small inertia of movement, low noise, steady movement, flexible operation, large cutting section, etc.
3. Due to the combination of hydraulic and electrical control, the horizontal metal shear is able to accomplish the shift of single and continuous cutting easily.

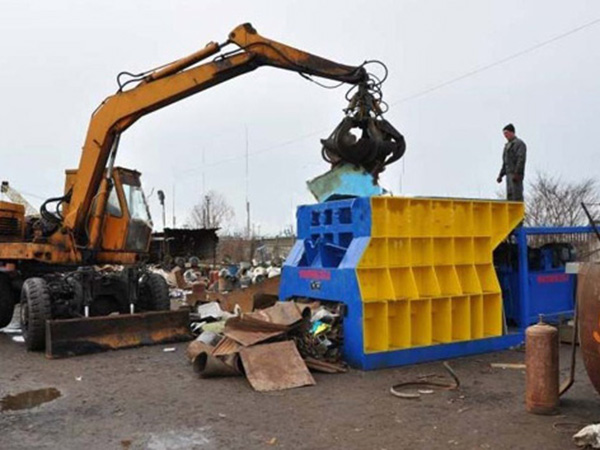

4. While cutting, the machine is able to process the materials automatically without manual support. Operators only need to feed the materials for cutting into the compacting box continuously consistent with the cutting speed.
5. Our product can be powered by motor or Cummins diesel engine as required.

Technical Parameters
No. Technical Parameter Remark
1 Cutting Cylinder Model YG320×220-950 Nominal Force 2000×2kN 400T
Stroke 950mm Quantity 2pcs
2 Compacting Cylinder Model YG250×180-1150 Nominal Force 1250kN 125T
Stroke 1150mm Quantity 1pcs

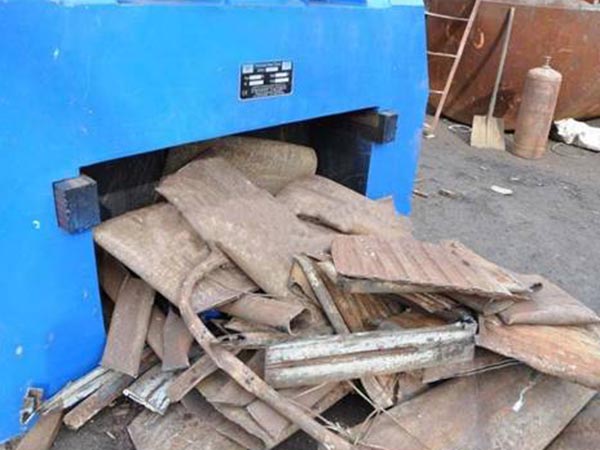

3 Discharge Port Size (L×H) 1400mm×450mm
4 Blade Length 1400mm
5 Cutting Speed 1-2times/min
6 Cutting Materials Square steel: 100mm×100mm Normal Steel
Angle iron: 180mm×180mm×15mm (3pcs)
Round steel: Φ110 mm
Double tee iron: 320mm×132mm×11.5mm
Steel plate: 30mm×450mm
U-steel: 320mm×90mm×10mm
7 Production Capacity 3~5t/h
8 Cooling Mode Air cooling
9 Pressure of Hydraulic System 25.0MPa
10 Main Motor Model Y225S-4 Power 37kw
Rated Speed 1480r/min. Quantity 2pcs
11 Pump Model HY160Y-RP Nominal Discharge 160ml/r
Nominal Pressure 31.5MPa Quantity 2pcs
12 Power Supply 380V/50Нz
13 Total Power About 84kw
14 Overall Size (L×W×H) 7000mm×2200mm×2280mm
15 Weight of Equipment About 23.5T
