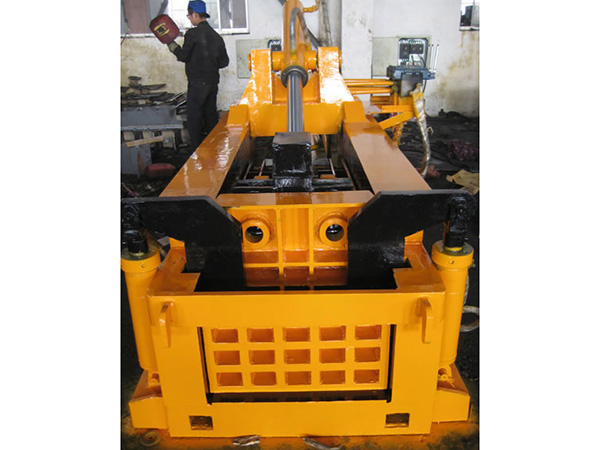

Y83Q-135 Scrap Metal Baler

Our Y83Q-135 scrap metal baler pushes the bale out forwardly. It is mainly applied in metal smelting in small and medium scale, as well as waste metal processing and recycling.
<p>Manipulated by hand, this machine specializes in processing the light and thin materials. Its compressed bale is applicable for small processing furnace in the steel plant. The bale is about 240mm high and its length is varied by different quantity of feeding materials.

Technical Parameters
No. Parameters
1 Main Hydraulic Cylinder Model YG280/200-1700
Nominal Thrust 1600kN
Stroke 1700mm
Quantity 1pcs
2 Lid Cylinder Model YG140/100-1050
Nominal Thrust 380kN
Stroke 1050mm
Quantity 1pcs
3 Locking Door Cylinder Model YG90/60-250
Nominal Thrust 150×2kN
Stroke 250mm
Quantity 2pcs
4 Compacting Box Size (L×W×H) 1300mm×600mm×600mm
5 Bale Section Size (L×H) 600mm×240mm
6 Hydraulic System Pressure ≤ 25.0MPa
7 Single Cycle Time About 100s
8 Motor Model Y200L2-6
Rated Power 22kw/30HP
Norminal Rataty Speed 970rpm
Quantity 1pcs
9 Plunger Pump Model 160YCY14-1B
Norminal Displacement 160ml/r
Norminal Pressure 31.5MPa
Quantity 1pcs
10 Overall Dimension 4450mm×2250mm×1900mm
11 Machine Weight 5.5ton

Related Names
Forward Out Baler | Light Iron Baler | Scrap Metal Baling Press Machine | Manual and PLC Control Metal Baler
