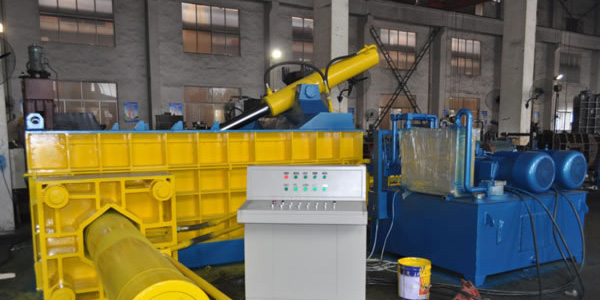

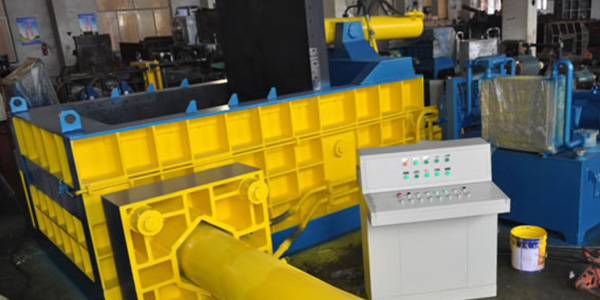

Y83/T-250B Scrap Metal Baler

With bale side out, this Y83/T-250B scrap metal baler is mainly suitable for the metal smelting factory with medium and large scaled output, metal processing and recycling plant and other places. For the customers in Russia and Ukraine, this product is extremely popular and it is one of our best sellers. Its outstanding stong points are high stable performance, low failure rate, high production efficiency, high density of bales and so on.
Our scrap metal baler can be manipulated by hand or PLC. According to the requirements of users, its compacting box varies in size, such as 2000mm×1400mm×900mm or 2000mm×1750mm×1200mm. In addition, this product is allowed to be structured with pull rod so as to be convenient for assembling, disassembling, transporting in containers, decreasing the cost of delivery. The applicable thickness of the processing materials reaches 5mm. The motor of 60kw or 74kw can be configured as required.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Model YG340/220-2220 Quantity 1pcs
Nominal Thrust 2500kN Stroke 2220mm
2 Side Hydraulic Cylinder Model YG240/160-1560 Quantity 2pcs Double cylinders in parallel
Nominal Thrust 1150kN×2 Stroke 1560mm
3 Lid Cylinder Model YG240/160-1350 Quantity 1pcs
Nominal Thrust 1150kN Stroke 1350mm
4 Wicket Cylinder Model YG160/110-560 Quantity 1pcs
Nominal Thrust 500kN Stroke 560mm
5 Hydraulic System Pressure 25MPa (Max. Pressure: 27MPa)
6 Oil Tank Capacity 600L
7 Compacting Box Size 2000mm×1750mm×900mm
8 Thickness of Baled Material Common metal mateials
9 Bale Size 500mm×500mm
10 Bale Density ≥ 1800kg/m3
11 Control Mode Manual control or PLC control
12 Single Cycle Time About 90s
13 Oil Pump Model HY180Y-RP Rated Pressure 31.5MPa
Flow Quantity 180ml/r Quantity 2pcs
14 Motor Model Y225M-4 Rated Rotating Speed 1480rpm
Power 45kw Quantity 2pcs
15 Overall Dimension 7400mm×5550mm×3200mm
16 Machine Weight 26.5ton
