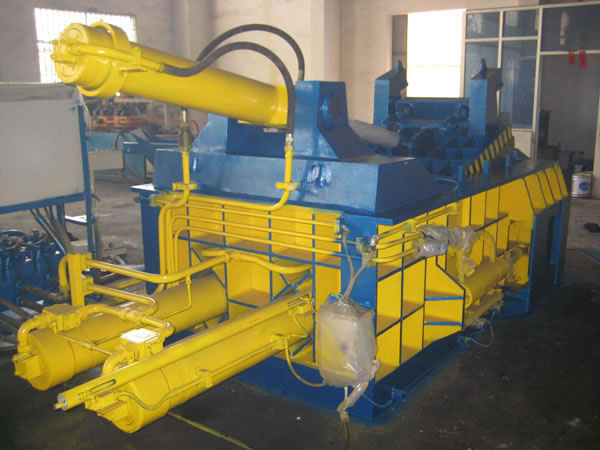

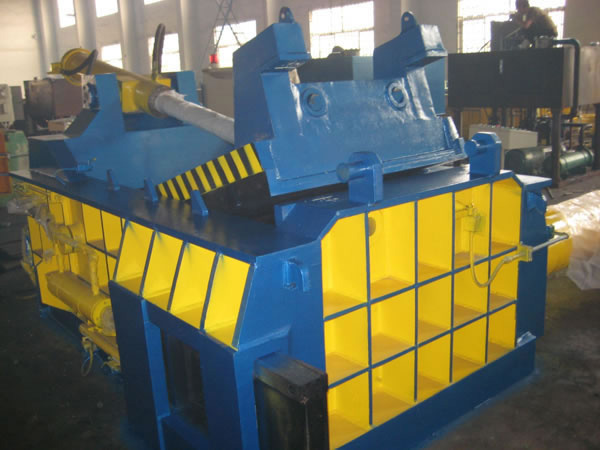

Y83/T-200B(UA) Scrap Metal Baler

This Y83/T-200B(UA) scrap metal baler pushes the bale out of the machine from one side. It is mostly used in the metal smelting plant with medium scaled production, metal processing and recycling stations and other applications. This product is mainly exported to Australia and other countries.
Users can choose to operate this scrap metal baler manually or under PLC control. Moreover, the feeding hopper is optional for meeting the needs of users. As this product has larger compacting box and the motor with higher power than the Y83-160 type, its output is higher as well. Additionally, our product is able to pack the materials that are 4.5mm thick. More information will be gotton from our professional sales group.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Model YG320/220-955 Quantity 1pcs
Nominal Thrust 2000kN Stroke 955mm
2 Side Hydraulic Cylinder Model YG220/160-1460 Quantity 2pcs Double cylinders in parallel
Nominal Thrust 950kN×2 Stroke 1460mm
3 Lid Cylinder Model YG200/140-1315 Quantity 1pcs
Nominal Thrust 800kN Stroke 1315mm
4 Wicket Cylinder Model YG125/80-395 Quantity 1pcs
Nominal Thrust 300kN Stroke 395 mm
5 Hydraulic System Pressure 25MPa (Max. Pressure 27MPa)
6 Oil Tank Capacity 2142L
7 Compacting Box Size 1800mm×1400mm×900mm
8 Thickness of Baled Material Common metal mateials
9 Bale Size 400mm×400mm
10 Bale Density ≥ 1800kg/m3
11 Control Mode Manual control
12 Single Cycle Time About 90s
13 Oil Pump Model 160YCY14-1B Rated Pressure 31.5MPa
Flow Quantity 160ml/r Quantity 2pcs
14 Motor Model Y225M-6 Rated Rotating Speed 980rpm
Power 30kw Quantity 2pcs
15 Overall Dimension 6450mm×3750mm×1800mm
16 Machine Weight 16.5ton
