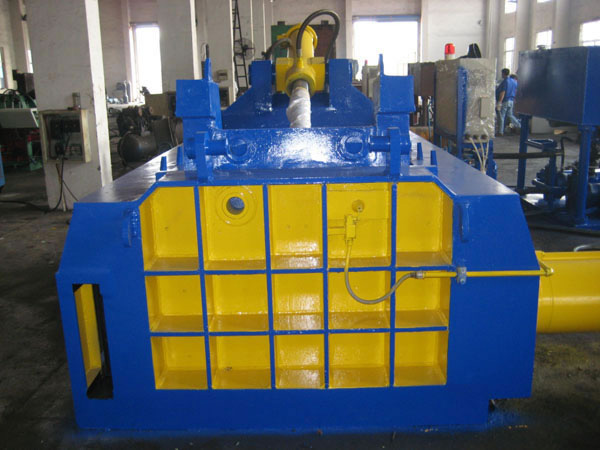

Y83/T-160A Scrap Metal Baler

Our Y83/T-160A scrap metal baler is popularized in the metal processing and recycling station, metal smelting plant with small and medium production. It is configured with the compacting box in size of 1600mm×1000mm×800mm. The finished bale is about 400mm×400mm in size.
Both the manual manipulation and the PLC automatic operation are available. Moreover, this scrap metal baler can be equipped with the motor with the optional power like 30kw or 37kw according to the production.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Model YG280/200-1350 Quantity 1pcs
Nominal Thrust 1600kN Stroke 1350mm
2 Side Hydraulic Cylinder Model YG240/160-1250 Quantity 1pcs
Nominal Thrust 1200 kN Stroke 1250mm
3 Lid Cylinder Model YG180/110-1245 Quantity 1pcs
Nominal Thrust 650 kN Stroke 1245mm
4 Wicket Cylinder Model YG125/70-440 Quantity 1pcs
Nominal Thrust 300 kN Stroke 440mm
5 Hydraulic System Pressure 25MPa (Max. Pressure: 27MPa)
6 Oil Tank Capacity 1500L
7 Compacting Box Size 1600 ×1000 × 800mm
8 Thickness of Baled Material Common metal mateials
9 Bale Size (400~600)mm×400mm×400mm
10 Bale Density ≥ 1800kg/m3
11 Control Mode Manual control or PLC control
12 Single Cycle Time About 140s
13 Oil Pump Model 160YCY14 - 1B Rated Pressure 31.5MPa
Flow Quantity 160ml/r Quantity 1pcs
14 Motor Model Y200L2-6 Rated Rotating Speed 970rpm
Power 22kw Quantity 1pcs
15 Machine Weight 10.5ton
