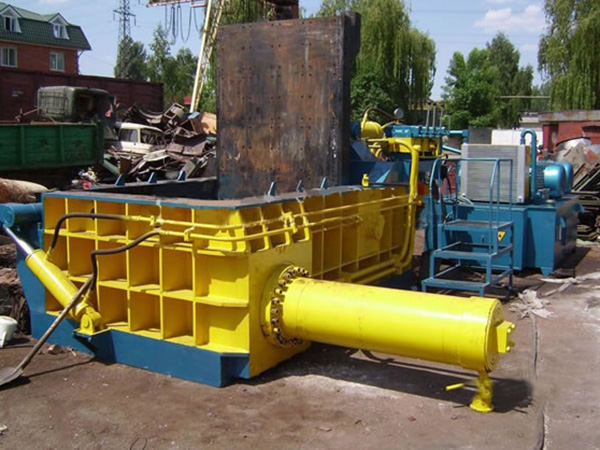

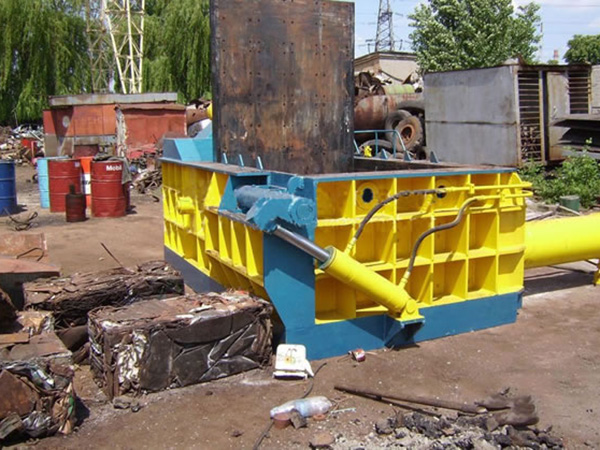

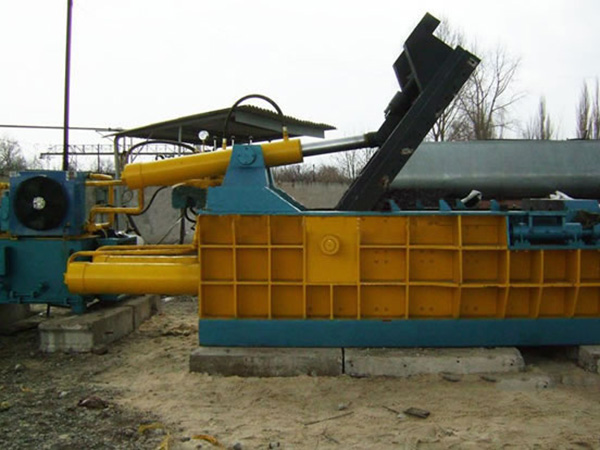

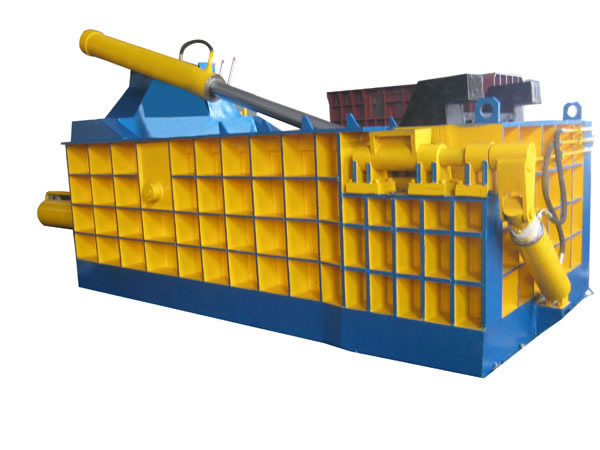

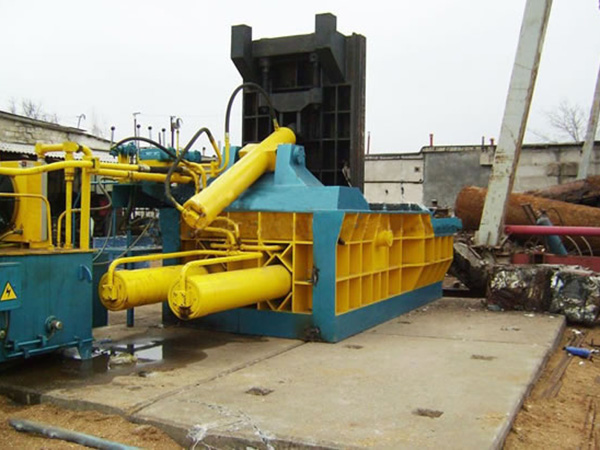

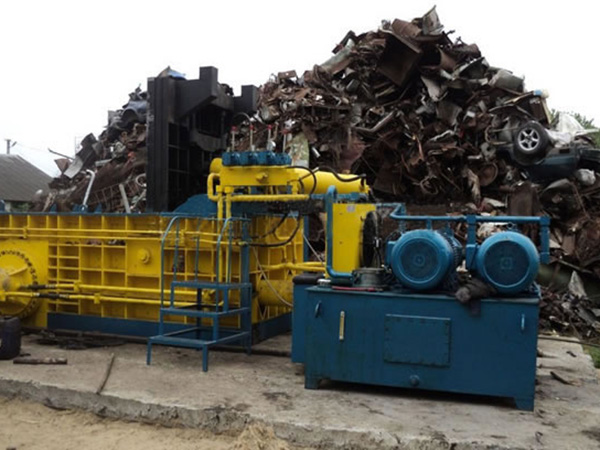

Y83-315 Scrap Metal Baler

This Y83-315 scrap metal baler is a manually manipulated turn-out machine. It is mostly applied in metal smelting factory with the medium and large output and the waste metal recycling station. Moreover, this product can be designed to be side push-out machine with PLC.

The most important advantage of this scrap metal baler is reflected at the large compacting box that is able to process large sized waste metal materials. The maximum thickness of the applicable material is 6mm. Our machine is able to output 6 to 8 tons of bales every hour.

Consistent with the needs of users, the compacting box varies in size, such as 2600mm×1400mm×1200mm and 2600mm×1750mm×1200mm. The compressed bale size is about 500mm×600mm. Furthermore, the product can be configured with the power system of 74kw or 111kw as required.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Model YG400/290-1300 Quantity 1pcs 315ton
Nominal Thrust 3150kN Stroke 1300mm
2 Side Hydraulic Cylinder Model YG280/200-2180 Quantity 2pcs 300ton
Nominal Thrust 1500kN×2 Stroke 2180mm
3 Lid Cylinder Model YG240/160-1960 Quantity 1pcs 120ton
Nominal Thrust 1200kN Stroke 1960mm
4 Turn-out Cylinder Model YG160/110-520 Quantity 1pcs 30ton
Nominal Thrust 300kN Stroke 520mm
5 Hydraulic System Pressure 25MPa
6 Compacting Box Size 2600mm×1750mm×1200mm
7 Bale Size (450~800)mm×500mm×600mm
8 Single Cycle Time About 160s
9 Control Mode Turn-out baling through manual valve operation
10 Cooling Mode Air cooling
11 Production 6-8ton/h
12 Hydraulic Pump Model 250YCY14-1B Rated Pressure 31.5MPa
Flow Quantity 250ml/r Quantity 2pcs
13 Motor Model Y250M-6 Rated Rotating Speed 980rpm
Power 37kw Quantity 2pcs
14 Machine Weight 35ton
