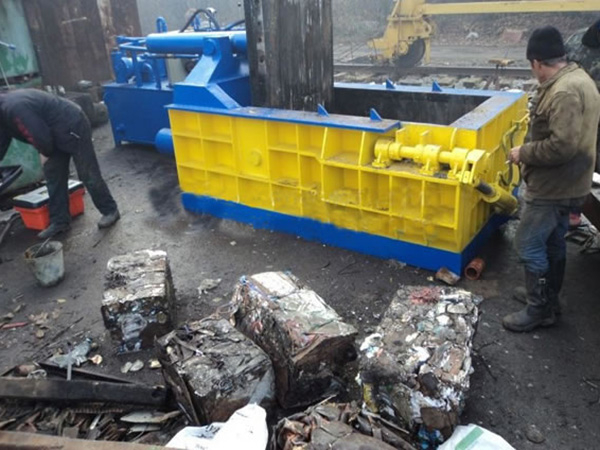

Y83-160 Scrap Metal Baler

The Y83-160 scrap metal baler is a turn-out machine that is mainly suited to work in the metal smelting plant with small and medium production, waste metal recycling station.
Our machine supports manual operation. Its compacting box can be made in size of 1400mm×900mm×700mm, 1600mm×1000mm×800mm or 1600mm×1200mm×800mm according to the demands of customers. Moreover, this scrap metal baler can be matched with the power of 22kw, 30kw or 37kw as required. The hourly production output reaches about 3ton.

Technical Parameters
No. Parameters Note
1 Main Hydraulic Cylinder Nominal Thrust 1600 kN Quantity 1
Model YG280 / 200 - 1350 Stroke 1350mm
2 Side Hydraulic Cylinder Nominal Thrust 1200 kN Quantity 1
Model YG240 / 160 - 1250 Stroke 1250mm
3 Lid Cylinder Nominal Thrust 650 kN Quantity 1
Model YG180 / 110 - 1245 Stroke 1245mm
4 Turn-out Cylinder Nominal Thrust 150 kN Quantity 1
Nominal Thrust YG90 / 60 - 380 Stroke 380mm
5 Hydraulic System Pressure 25MPa(Max. Pressure 27MPa)
6 Oil Tank Capacity 1500L
7 Compacting Box Size 1600mm×1000mm×800mm
8 Thickness of Baled Material Common metal mateials
9 Bale Size (400~600)mm×400mm×400mm
10 Bale Density ≥ 1800kg/m3
11 Control Mode Manual control
12 Single Cycle Time About 120s
13 Oil Pump Model 160YCY14-1B Rated Pressure 31.5MPa
Flow Quantity 160ml/r Quantity 1pcs
14 Motor Model Y200L2-6 Rated Rotating Speed 970rpm
Power 22kw Quantity 1pcs
15 Overall Dimension 5650mm×2800mm×1600mm
16 Machine Weight 9.5ton
