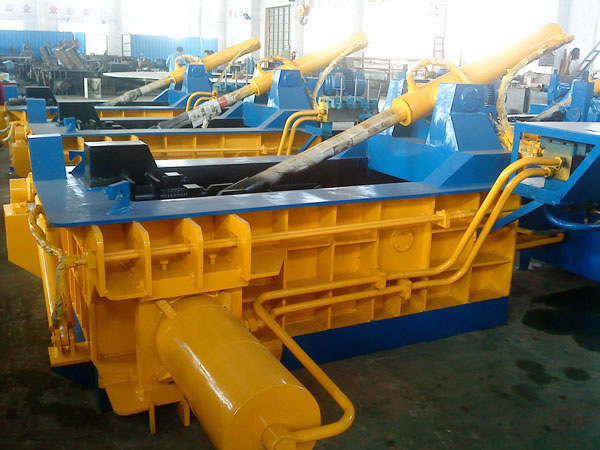

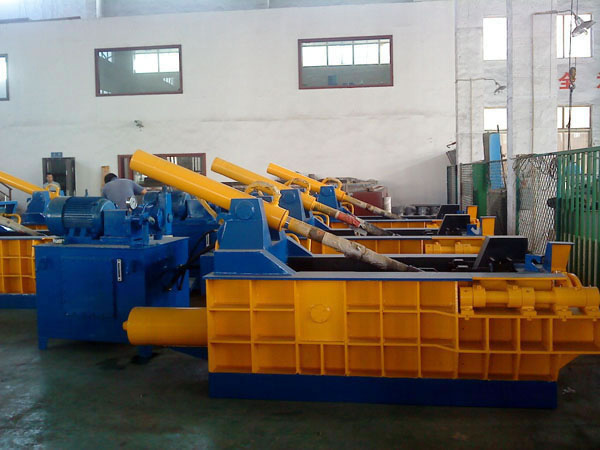

Y83-125 Scrap Metal BalerThe Y83-125 scape metal baler is the proper equipment suitable for small and medium scaled metal smelting and waste metal recycling. Due to the small volume, low production cost, low failure rate, small investment and other merits, the product is our bestselling machine. It has a wide customer base all over the world. Operated by hand, this scape metal baler is able to make the bale in size of 250mm×250mm. Powered by 18.5kw, it is extremely energy saving and environment protective. |
No. | Parameters | Note | |||||
1 | Main Hydraulic Cylinder | Model | YG240/160-480 | Stroke | 480mm | ||
Max. Thrust | 1250kN | Quantity | 1pcs | ||||
2 | Side Hydraulic Cylinder | Model | YG220/160-880 | Stroke | 880mm | ||
Max. Thrust | 1000kN | Quantity | 1pcs | ||||
3 | Lid Cylinder | Model | YG130/90-920 | Stroke | 920mm | ||
Max. Thrust | 330kN | Quantity | 1pcs | ||||
4 | Turn-out Cylinder | Model | YG80/50-360 | Stroke | 360mm | ||
Max. Thrust | 80kN | Quantity | 1pcs | ||||
5 | Compacting Box Size (L×W×H) | 1200mm×700mm×600mm | |||||
6 | Hydraulic System Pressure | 25.5MPa (Turning out system: 6MPa) | |||||
7 | Single Cycle Time | About 120s | |||||
8 | Motor | Model | 63YCY14-1B | Rated Pressure | 31.5MPa | ||
Norminal Rotating Speed | 63ml/r | Quantity | 1pcs | ||||
9 | Hydraulic Pump | Model | Y180M-4 | Rated Rotating Speed | 1460rpm | ||
Rated Displacement | 18.5kw | Quantity | 1pcs | ||||
10 | Machine Weight | About 5.0ton |
